AZ-305: Identity, Governance, and Monitoring

All notes taken from the relevant AZ-305 learning path starting point.

Governance

• Hierarchy

  • Tenant root group = container, allowing global policies and roles
  • Management Groups (6 levels) = manage access, policy, compliance
    • limit regions for VM’s
    • role assignments to be inherited by subscriptions
    • monitor and audit
  • Subscriptions = logical grouping, billing boundary
    • Consider a subscription per DTAP environment
    • Virtual Networks can’t be shared across subscriptions
  • Resource Groups = logical grouping, metadata in one region
    • Cannot be nested
    • Cannot be renamed
    • Grouped creation or deletion of resources
    • Manage permissions via Groups
    • Allows Azure policies, Azure roles
    • Tags possible, not inherited by resources in group
  • Resources = instances of services
    • Each resource is in exactly one resource group
    • Tags = name-value pairs

• Strategies

  • Azure policies
    • Control and/or audit resources
    • Inherited through hierarchy
    • Works for Azure Arc (e.g. VMware vSphere, Kubernetes clusters)
    • Can automatically remediate
    • To be combined with RBAC
  • Role-Based Access Control (RBAC)

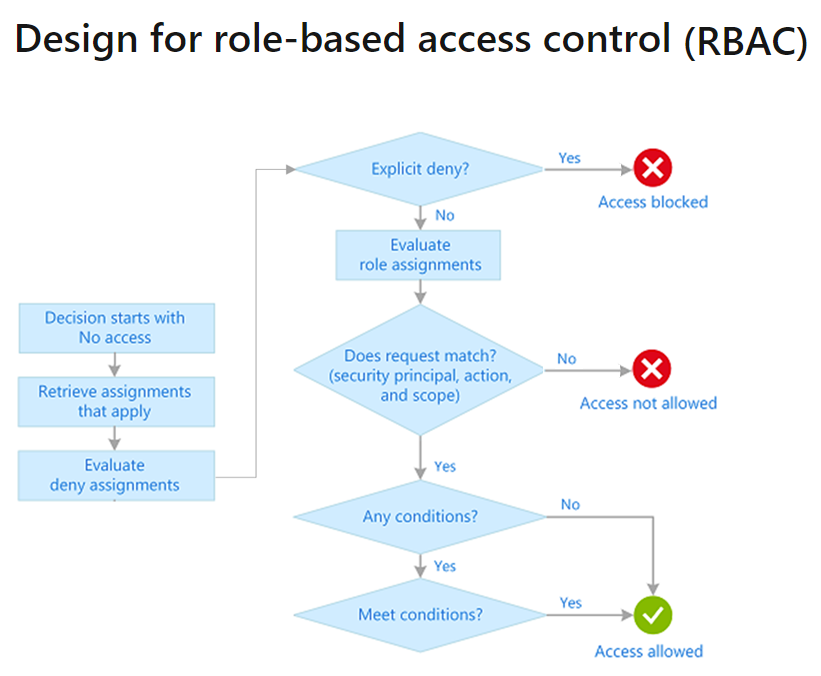

    • See flowchart
  • Resource locks (override user permissions)
    • Applicable for
      • Subscription
      • Resource group
      • Resource
    • Variants
      • CanNotDelete
      • ReadOnly

• Azure Landing Zone = Architectural decision and design

  • Types: Application Landing Zones Platform Landing Zones
  • Accelerator =n portal-based deployment experience

Authentication and Authorization

• Identity and Access Management (IAM)

  • Microsoft Entra ID basics
    • Multi-tenant
    • Cloud-based directory services
    • Application access management
    • Identity protection
    • Cloud-only vs Hybrid (extending on-premises Active Directory)
      • Microsoft Entra Connect
      • Microsoft Entra Connect cloud sync

• Microsoft Entra B2B

  • Invite External Identities as Guest users
  • Conditional Access policies based on extra factors
  • Optionally enable MFA

• Azure AD B2C (a “type of Microsoft Entra tenant, separate from the Microsoft Entra Tenant)

  • Custom attributes for customers
  • Custom sign-in and sign-up experience
  • User flows support
  • Optionally store users externally

• Conditional Access (requires P1 or P2 license)

  • Actions: allow or deny access, enforce MFA
  • Conditions: user/group, cloud app, device state, location (ip range), client app, sign-in risk
  • Report-only mode

• Identity Protection

  • Automate detection and remediation
  • Investigate risks
  • Export risk detection data
  • Risk policies
    • User risk (is account compromised?)
    • Sign-in risk (suspicious sign-in?)

• Access Review

  • Check if access is still needed by
    • Resource (business) owners
    • Delegates that do the reviews
    • End user (self-attest)

• Security Principals

  • User Principal
  • Service Principal (for app instances) with Application Objects (“definition” for an app)
    • Application Service Principal = local representation in a specific tenant
    • Managed Identity (with Client ID and Object ID)
    • Legacy Service Principal (might have credentials)

• Managed Identities

  • Types
    • System-assigned (automatically created by Azure for your resource)
    • User-assigned (by an admin, can be assigned to multiple instances of an Azure service)
  • Combine with Azure Key Vault

• Azure Key Vault

  • Manage secrets, keys, certificates
  • Tiers
    • Standard: encrypted with software key
    • Premium: encrypted with hardware security module (HSM) keys
  • Separate (e.g. by application is most common)
  • Soft delete and Purge protection

Log and Monitor Resources

• Azure Monitor

  • Logs and Metrics
  • Data Sources
    • Application data (custom app code)
    • Operating System data (diagnostics, or via monitor logs agent / dependency agent)
    • Azure resources data (e.g. web app or load balancer)
    • Subscription data and Azure health
    • Tenant data and AD
  • Query logs
  • Alerts based on Logs and Metrics

• Azure Monitor Log Analytics workspaces

  • Tables for organization
  • Pricing tier, retention, data capping
  • Access modes
    • Workspace-context: user can review all logs in workspace
    • Resource-context: user can review logs only for tables (and rows) scoped to their resource
  • Azure Workbooks - homebrew prefab analysis
    • Combine sources
    • Supports: Logs, Metrics, Resource Graph, Alerts, Workload Health, Resource Health, Data Explorer
  • Azure insights - custom monitoring
    • Customized monitoring experience
    • Features of Azure Monitor, e.g.
      • Application Insights (APM for web apps)
      • Container Insights (e.g. AKS clusters)
      • Network Insights
      • Resource Group Insights
      • VM Insights
      • etc.

• Microsoft Sentinel

  • Security Information and Event Management (SIEM)
  • Security Orchestration, Automation, and Response (SOAR)

• Azure Data Explorer

  • Parts
    • Azure Data Explorer Unified Analytics Platform
    • Azure Data Explorer SDKs
    • Azure Data Explorer Web UI
  • Integrates with Databricks and Azure ML
  • Long data retention
