AZ-305: Infrastructure

All notes taken from the relevant AZ-305 learning path starting point.

Azure Compute

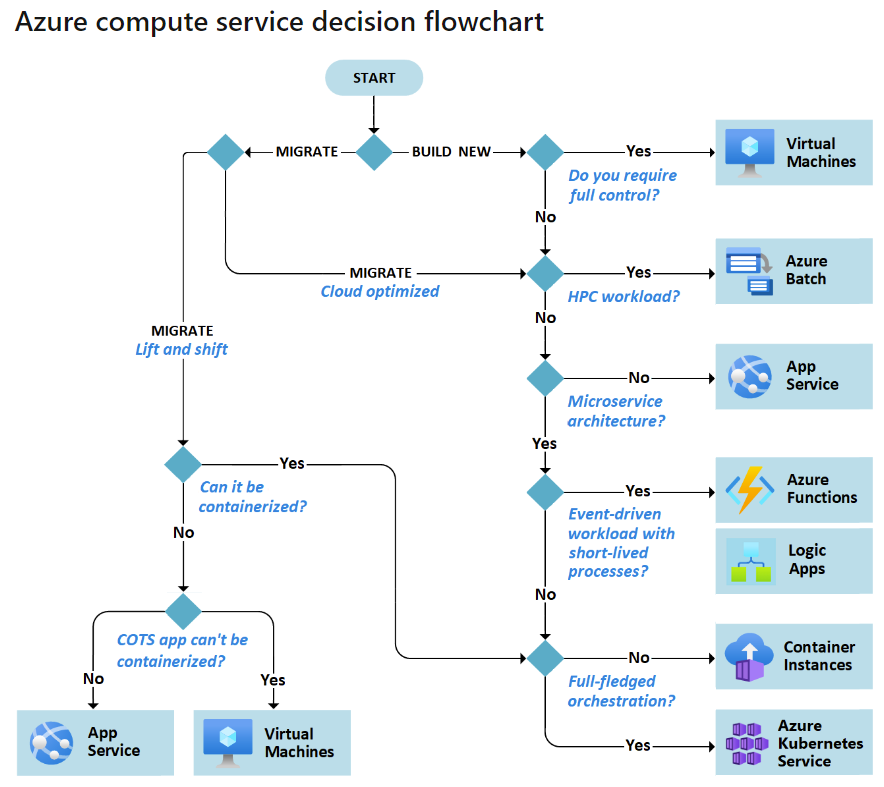

Overview (see flowchart)
Azure VMs (IaaS)
- Lift and Shift Migrations without containerization
- New workloads requiring full control
- Classifications (tiers)
  - General purpose: balanced CPU-to-memory (test and dev, or small-to-medium scenarios)
  - Compute optimized: high CPU (web servers, network appliances, batch processes)
  - Memory optimized: high memory (relational database servers, caches, etc)
  - Storage optimized: high disk throughput and I/O (database servers)
  - GPU: graphics rendering and video editing, and e.g. deep learning
  - High performance computes: high CPU and optional high-throughput network (high performance scenarios)
- Costs
  - Compute: priced hourly, billed per minute of use
  - Storage: charged for Storage used by disks
- Operating system (64bit only)
  - Windows (OS license included)
  - Linux
  - Azure Marketplace for OS image with tools (e.g. WordPress)
Azure Batch (PaaS)
- Cloud optimized HPC workloads (up to thousands of VM’s)
- Good for parallel workloads
- Good for tightly coupled workloads where apps need to communicate
- Azure Storage to fetch applications or data
- Azure Storage to write output
- Can use pooling (allocate pools with multiple nodes and/or isolated VM sizes for guaranteed progress)
- Optimize jobs and tasks
- Has best practices guidance
Azure App Service (PaaS)
- Cloud optimized HTTP-based service
- For web apps, background jobs (WebJobs), mobile backends, REST APIs
- Supports ASP.NET, ASP.NET Core, Java, Ruby, NodeJS, PHP, Python
- Supports Windows or Linux host
- Built-in load balancing and traffic management with high availability
- Allows for built-in auth (“Easy Auth”)
- Deployment slots for DTAP (Standard App Service Plan or higher)
- App Service Plan for costs
Azure Functions (FaaS)
- Event-driven workloads with short-lived processes (Code First)
- C#, Java, JavaScript, PowerShell, Python
- Avoid long-running functions
  - Consumption Plan: 300 second time-out
  - Other plans: 30 minutes time-out
- Durable functions for state and function chaining
- Group functions with different load profiles
- Defensive coding needed
- Separate storage account for each function application
Azure Logic Apps (FaaS)
- Event-driven workloads with short-lived processes (Design First)
- Part of “Azure Integration Services”
- Best if it has external connections
- Might have slow activation time
Azure Container Instances (PaaS)
- Cloud-optimized microservices
- Lift and shift if your workload can be containerized
- Fast startup, per-second billing, persistent storage (e.g. via Azure Files shares)
- Container Group (e.g. front-end container grouped with back-end, or app container with monitoring container)
- Best practices
  - Private registry (Docker Trusted Registry or Azure Container Registry)
Azure Kubernetes Service (AKS) (PaaS)
- Full-fledged orchestration for cloud-optimized containerizable microservices
- Container Management (organize and change containers)
- Container Orchestration (dynamically adjust number of instances, automatically update running instances)
- Scaling options
  - Horizontal pod autoscaler (to meet increased demand)
  - Cluster autoscaler (automatically scale cluster nodes)
- Utilize ARM templates
  - networking
  - Microsoft Entra integration
  - monitoring
- Supports Azure Monitor
- Supports Virtual Networks
- Supports static and dynamic storage volumes
- Supports ingress with HTTP application routing
- Supports Azure Container Registry

Application Architecture

Messages
- Raw data itself in messages
- Expectations between producer and consumer
- Allows for guaranteed communication
- Azure Queue Storage
  - Large numbers (millions) of messages in Azure Storage
  - Limited only by Azure Storage Account limits (e.g. over 80 GB)
  - Increased reliability
  - Guaranteed message delivery
  - Transactional support
- Azure Service Bus (High-value enterprise messaging)
  - Message broker
  - Allows load-balancing work
  - High degree of reliability
  - Under 80 GB queue storage
  - Under 64 KB message payload total size (32 KB per property)
  - Allows FIFO guarantee (with “sessions”)
  - Supports “Auto-forwarding”
  - Supports Dead-lettering
  - Message Queues
    - Message broker on top of Service Bus
    - Intended for Enterprise Applications
  - Publish-Subscribe Topics
    - Multiple subscribers possible
    - Each subscriber receives a copy of the message
Events
- Light-weight broadcasts
- Publish / Subscribe model
- Zero to many subscribers possible
- Azure Event Hubs (Big Data Pipeline)
  - Millions of events per second possible
  - Real-time as well as store for later analysis
  - Integrates with Apache Storm
  - Events ordered by receive time, consumers can seek along the stream
  - Events are kept (until time-o-live expired) even when consumed
  - No Dead Letter or other similar mechanism
  - Pricing
    - Scaling through “purchased throughput units”
      - Ingress unit = 1MB per second OR 1000 events per second
      - Egress unit = 2MB per second OR 4096 events per second
    - Performance per tier (Basic, Standard, Premium)
  - Ideal for: live dashboarding, supporting clickstreams, detecting anomalies (fraud, or outliers), processing transactions with real-time analysis
  - Supports many programming languages
- Azure Event Grid (Reactive programming)
  - Runs on Azure Service Fabric
  - Sources like Azure Blog Storage or Azure Media Services
  - Targets like Azure Functions and Azure DevOps Webhooks
  - Events contain reference (URL or identifier) to subject
- Azure IoT Hub
  - Fully managed service
  - Bi-directional communications between millions of devices
  - Secure communications
  - Hyper-scale communication options
  - Messaging patterns
    - Device-to-cloud telemetry
    - Uploading files from devices
    - Request-reply methods to control devices from the cloud
    - Device creation, connection, and failure tracking
Caching
- Azure Cache for Redis
  - Low-latency, high-throughput
  - Either Redis Open Source (OSS Redis) or Redis Enterprise (managed)
  - Multiple functions
    - Data cache (cache-aside pattern to load data into cache as needed, with expirations or eviction policies)
    - Content cache (for quick access to static content)
    - Session store (e.g. user sessions)
    - Message broker (supports distributed queue)
    - Distributed transactions (batch of commands in single transaction)
Azure API Management
- Suitable when you have
  - Large number of APIs
  - High rate of API changes
  - High API administration load (e.g. policies for quotas, rate limits, request transformations and validation)
  - Need to standardize disparate APIs
  - Need for enhanced API security
App Deployments
- Azure Resource Manager (ARM) templates
  - Declarative approach
  - Idempotent
  - Deployments in parallel
  - Supports “WhatIf”
  - Validated before deployment
  - Integrates with CI/CD tools
  - Different formats
    - JSON templates
    - Bicep templates (DSL for ARM templates)
- Azure Automation
  - Cloud-based automation and configuration
    - Process automation (automate time-consuming, error-prone cloud management tasks)
    - Configuration Management (change tracking)
    - Update management (create scheduled deployments in maintenance windows)
App Configuration
- Azure App Configuration
  - Central management of Application Settings and Feature Flags
  - Fully managed
  - Tagging with labels, key representations and mappings
  - Dedicated UI for feature flag management
  - Encryption at rest and in transit
  - Complements Azure Key Vault
  - Poll for changes or use Azure Event Grid

Network Solutions

Considerations
- Network requirements (naming, regions, subscriptions, IP addresses, segmentation and subnets, filtering)
- Workload requirements (CIDR ranges, network security groups, network traffic routing)
- IP range for Virtual Networks /16 or larger
- Consider hub-spoke network topology
Azure Firewall (works across Azure Virtual Network and subscriptions)
Network design options
- Pattern 1: Single Virtual Network
  - Single-region only
  - Network Security Groups or Application Security Groups
  - Subnets to e.g. separate workload types
- Pattern 2: Multiple Virtual Networks with Peering
  - Segment based on Virtual Network
  - Peer networks across regions (peering isn’t transitive!)
  - Allows for Pattern 1 options as well
- Pattern 3: Multiple Virtual Networks in hub-spoke topology
  - One Virtual Network is the hub in a region
  - Connect spokes to their hub with peering
  - Connect hubs across regions with peering
Routing
- Route Tables
  - System Routes (can’t be modified, can be overridden with UDRs)
    - Traffic between VM’s
    - Virtual network-to-network VPN for VM’s
    - Site-to-site through Azure ExpressRoute or Azure VPN Gateway
  - User-defined Routes, a.k.a. custom routes
    - Filtering of internet traffic or forced tunneling
    - Flow traffic through NVA
    - Define routes to direct traffic and hops
  - Routes from other Virtual Networks (when peering networks)
  - Border Gateway Protocol routes (when on-premises network gateway exchanges BGP routes)
  - Service endpoint routes (when enabling a service endpoint in a subnet)
- Azure Virtual Network NAT
  - Fully managed, highly resilient
  - All outbound connectivity through specified static public IP addresses
  - No load balancer or public IP for VM’s needed
Connect on-premises to Azure
- Azure VPN Gateway
  - Encrypted traffic between Azure Virtual Network and on-premises network
  - Over the public internet
  - Configuration options
    - Site-to-site
    - Point-to-site
    - Virtual network-to-network
- Azure ExpressRoute
  - Private (not over the internet), dedicated connection
  - Requires third-party connectivity provider
  - Can be used with “VPN Failover”
- Azure Virtual WAN
  - Hubs as managed service
  - Virtual Network Connections to Azure
  - Relies on hub-spoke network topology
  - Supports ExpressRoute and VPN Gateway

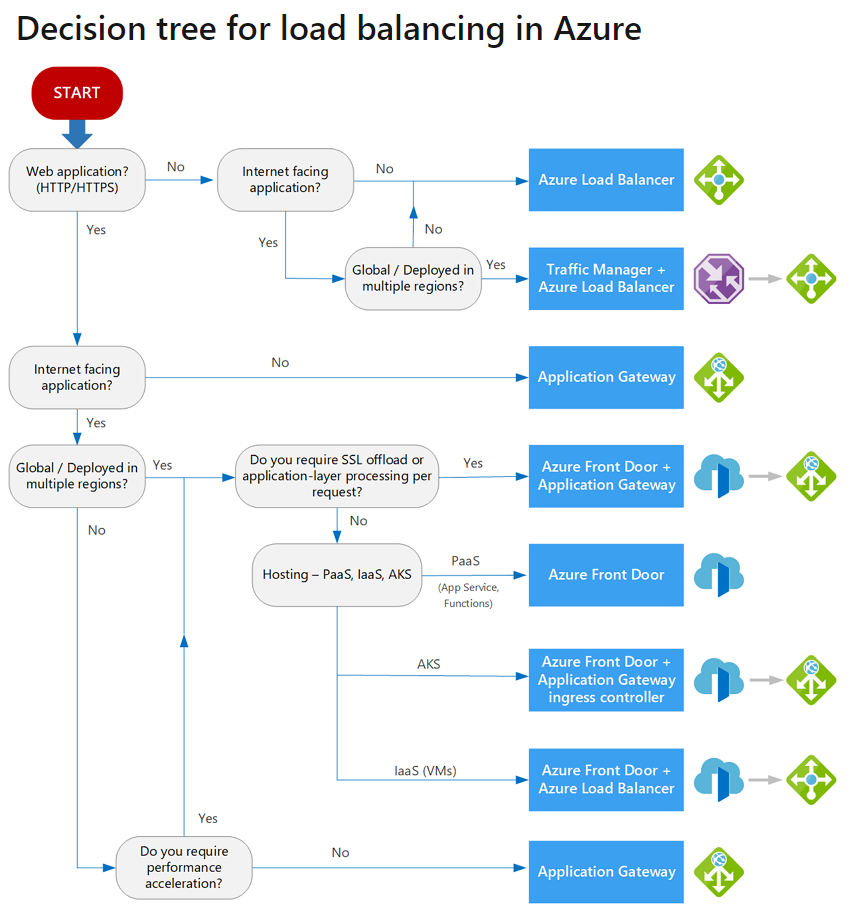

Load balancing (see flowchart)
- Aspects
  - Traffic type https? Public or private facing?
  - Global vs regional?
  - Availability and SLA
  - Cost
  - Features and limits
- Options
  - Azure Content Delivery Network
    - For high-bandwidth content
    - Global solution
    - Supports Microsoft, Akamai, Verizon networks
    - Supports custom domains, file compression, caching, geo-filtering
  - Azure Front Door
    - Low-latency, prioritization, weighted distribution, affinity, WAF and CDN integration
    - Global (multi-region) failover
  - Azure Traffic Manager
    - DNS-based traffic load balancer
    - Distribute traffic across regions
    - High Availability
    - Prioritization, weighted distribution, performance-based, geographic, subnet-based
    - Usually not for HTTPS traffic (see flowchart)
  - Azure Load Balancer
    - Layer 4 load-balancing (UDP and TCP)
    - High performance, low-latency
    - Map inbound connections to back-end pool destinations
    - Not global (so may need to be combined with Traffic Manager)
  - Azure Application Gateway
    - Layer 7 load-balancing
    - Web traffic load balancer
    - Application Delivery Controller (ADC) as a service
    - Path-based routing and Multiple-site routing
Application Protection Services
- Azure DDoS Protection
  - Traffic monitoring and DDoS protection
  - Support from DDoS rapid response team
- Azure Private Link
  - Access Azure hosted customer/partner services
  - Works over private endpoint in your own Virtual Network via Azure Backbone
  - Prevents traffic needing to go over the public internet
- Azure Firewall
  - Managed network security service with High Availability
  - Fully stateful firewall as a service
  - Static public IP address
  - Inbound protection (also for non-HTTP(S) protocols like RDP and SSH)
  - Outbound protection for all ports and protocols
  - Application-level protection for outbound HTTP(S)
- Azure Web Application Firewall
  - Protects against common web exploits (e.g. OWASP top 10)
  - Deploy as part of Application Gateway or Front Door
- Azure Virtual Network Security Groups (NSGs)
  - Works towards subnets and/or network interface cards (NICs)
  - Works with Access Control List (ACL) allow/deny rules
  - Prioritized inbound/outbound rules
- Service Endpoints (in Azure Virtual Networks)
  - Secure Azure service resources to virtual networks
  - Optimal routing from Azure services to virtual networks
- Azure Bastion
  - Managed PaaS to secure RDP and SSH over TLS
  - Monitor and manage remote connections

Migrations

Cloud Adoption Framework (CAF)
- Initial phases
  - Define strategy
    - Understand motivations
    - Business outcomes and justification
    - Prioritize projects
  - Plan
    - Digital estate
    - Organization readiness
    - Skill readiness
    - Cloud adoption plan
  - Ready
    - Operating model
    - Landing zones
    - Design area guidance
    - Implementation options
  - Adopt
    - Migration of workloads
      - Asses (determine costs, modernization, deployment tools)
      - Deploy (replicate or improve in the cloud)
      - Release (after testing release to users)
    - Modernization
    - Innovation
- Iterative phases
  - Secure
    - Risk insights
    - Business resilience
    - Asset protection
  - Manage
    - Business commitments
    - Operations baseline and maturity
  - Govern
    - Business risks
    - Policy and compliance
    - Governance maturity
Azure Migration Framework
- Stage 1: Assess on-premises environment
  - Five Rs of Rationalization
    - Rehost a.k.a. “Lift and Shift”
    - Refactor a.k.a. “Repackaging” to be cloud-native, usually with PaaS features
    - Rearchitect modify and extend app functionality to optimize for the cloud
    - Rebuild from scratch, for the cloud with best available tools
    - Replace with newer solutions, considering SaaS and FaaS options
  - Migration tools and services
    - Service Map (Azure Monitor) to identify dependencies (requires agent on VM’s)
    - Azure Total Cost of Ownership (TCO) Calculator
    - Azure Migrate to perform assessment and migration of VM’s, servers, databases, etc. with various tools
    - Data Migration Assistant (DMA) for SQL Server migrations
    - Database Migration Service for other database types
    - Azure Cosmos DB Data Migration tool
    - Microsoft Cost Management to monitor and optimize ongoing costs
    - Azure Advisor to monitor resources for reliability, performance, cost, security
    - Azure Monitor for telemetry from both on-premises and Azure resources
    - Microsoft Sentinel for security analytics
- Stage 2: Migrate workloads
  - Deploy cloud infrastructure (optionally with migration tools)
  - Migrate workloads (with a pilot first)
    - Azure Migrate
      - Unified platform with single portal
      - Various assessment and migration tools

        Server Migration

        SQL Server Data Migration Assistant (DMA)

        Azure Database Migration Service

        Web app migration assistant

        Azure Data Box
      - Different migration feature per workload
      - Azure Migrate hub tools
      - Scenarios

        Windows Server

        SQL Server

        Linux

        Windows apps, Java apps, PHP apps

        SAP HANA

        Specialized compute
    - Azure Resource Mover
      - Move resources between subscriptions, resource groups, and regions
      - Test a move before committing
      - Use before migration to organize resources
      - Use after migration to optimize organization
    - Azure Database Migration Service
      - Targets

        VM’s with SQL Server

        Azure SQL Database

        Azure SQL Managed Instance

        Azure Cosmos DB

        Azure Database for MySQL

        Azure Database for PostgreSQL
      - Modes

        Online (synchronization and cut over)

        Offline (with downtime)
      - Steps

        Step 1: asses databases

        Step 2: migrate schema in target

        Step 3: migrate data and verify
      - Requires Virtual Network, NSGs, Azure Windows Firewall, credentials, and target
    - Azure Storage Migration Service (from Windows Admin Center)
      - Inventory Windows servers
      - Transfer data
      - Cut over (optionally)
    - Azure File Sync (part of Azure Files)
      - Scenarios

        Replace or supplement on-premises file servers or NAS devices

        Lift and shift (rehome)

        Backup and disaster recovery

        Azure File Sync for performance and distributed caching
    - Azure Import/Export service
      - For large quantities of data from on-premises to Azure storage
      - Physical disks shipped to Azure data center
      - Requires BitLocker
      - Requires shipping carrier
      - Scenarios

        Migration (one-time task)

        Backup on-premises to Azure Storage

        Recovery from Azure Storage

        Distribution to customer sites
    - Azure Data Box
      - 80TB device is sent to your location, back to Data Center
      - Includes Data Box service (extension of Azure portal)
      - Shipping handled by Microsoft
      - Scenarios

        Migration (one time)

        Initial bulk transfer

        Periodic uploads
  - Decommission on-premises infrastructure when ready
- Stage 3: Optimize migrated workloads
  - Analyze and optimize costs based on recommendations
  - Improve workload performance
- Stage 4: Monitor workloads
  - Capture health and performance
  - Set up alerting and reporting
